This Electronic Cabinet Lock Kit Set is used for cabinet, drawer, locker, storage box and etc. for household or business: supermarket, sauna club, gym, swimming stadiums, library, factory and office.

Two Unlock Modes:（Default single card mode）

Single card to unlock(Use the manager card or user card to unlock);

Dual card unlock(Requires manager card + user card to unlock).

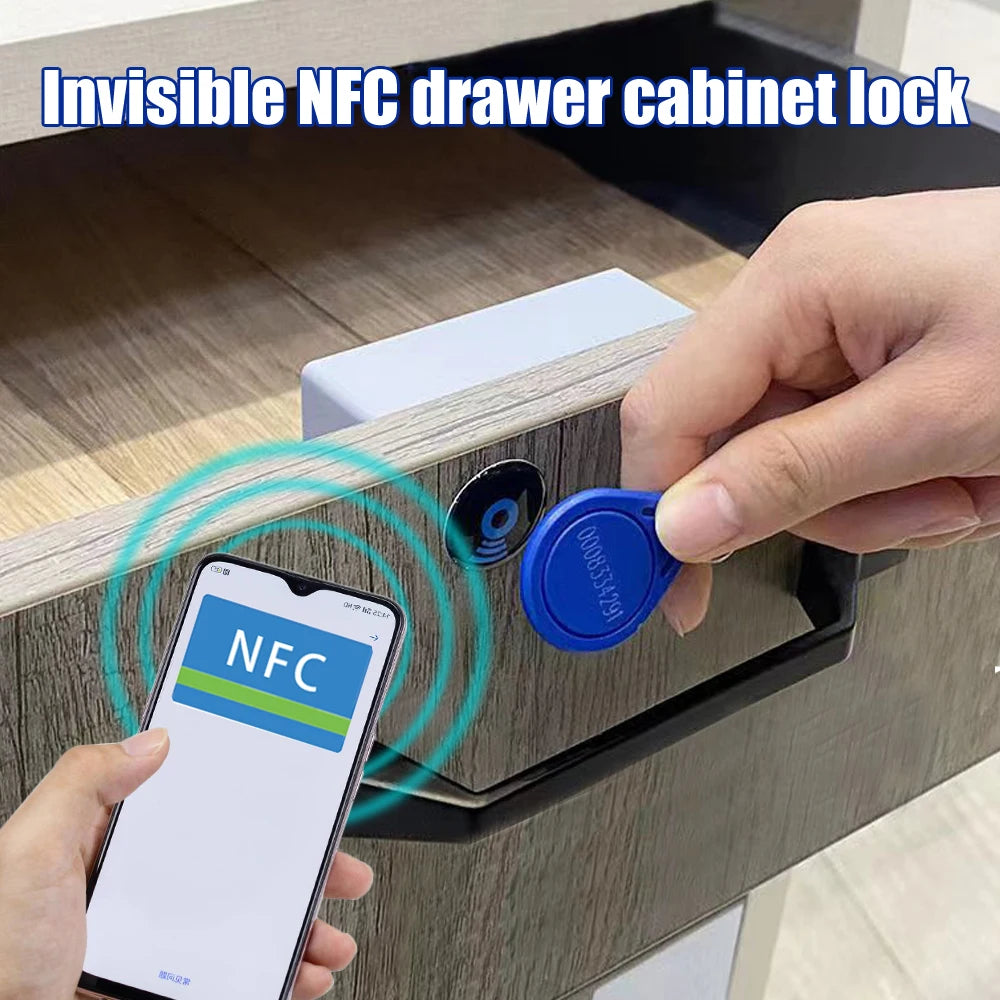

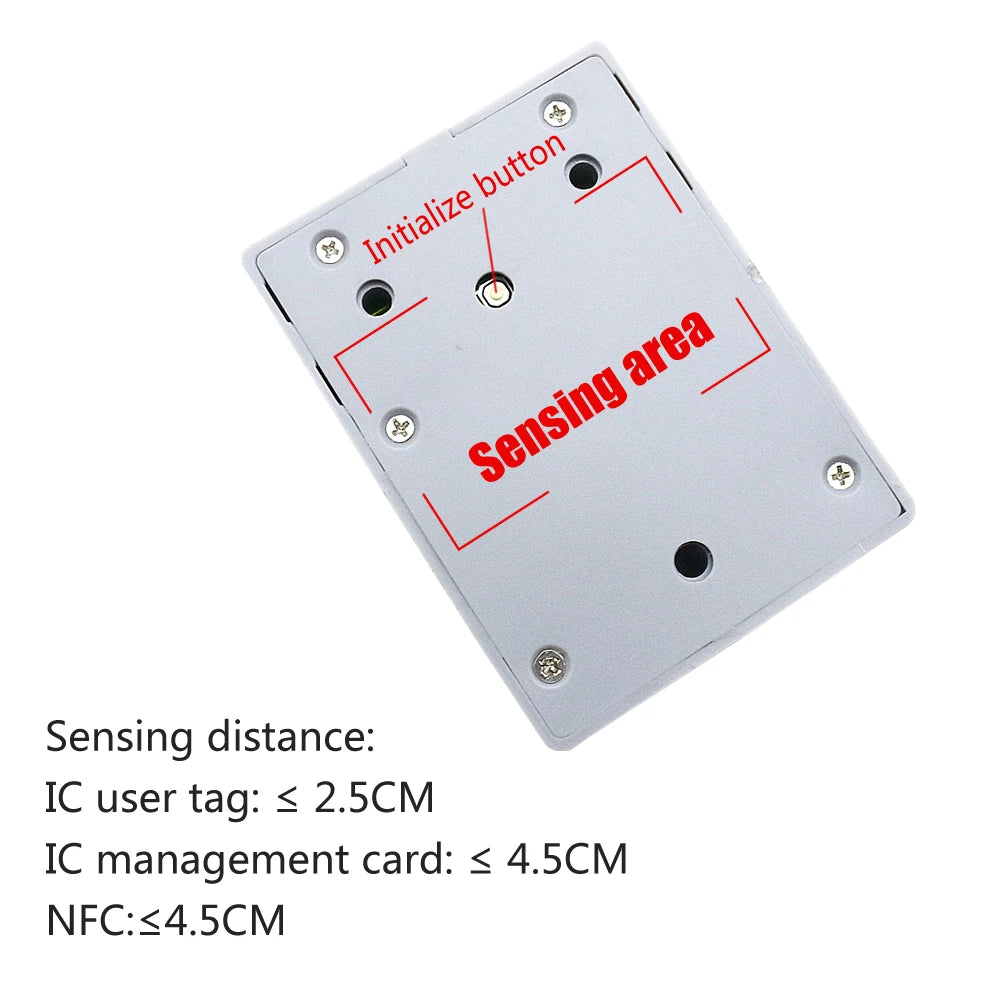

Use IC card Or mobile NFC to touch outside of cabinet, it lock will flick and open the door(Note: the tag only can be used for Max.2.5cm thick door, the IC card can be used for Max.4.5cm thick door).

Specifications:

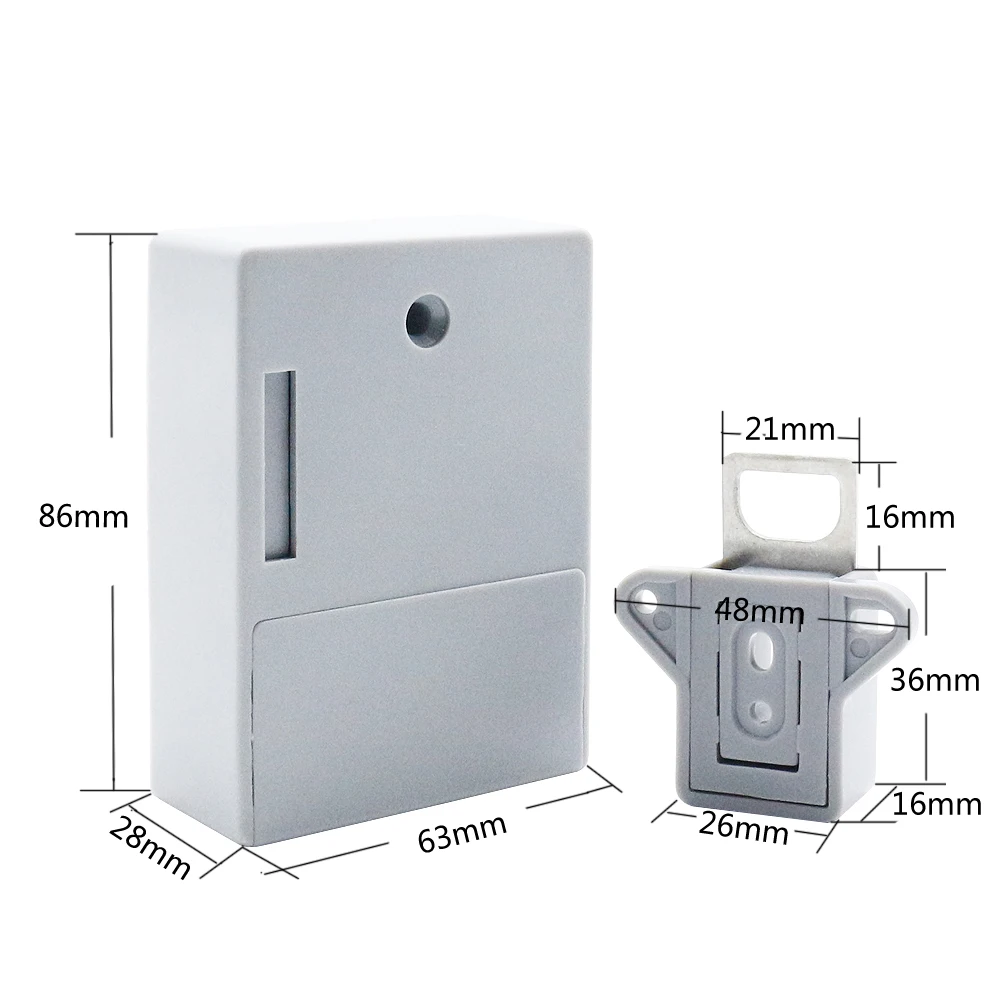

Master lock:86*63*28mm

Material : ABS plastic

Color: Gray

The frequency of the lock is 13.56mhz

User card capacity: 10pcs

New qualified batteries can work for 12 months.

Note: Can not be installed in the metal material of the drawer or door, metal will shield induction card signal

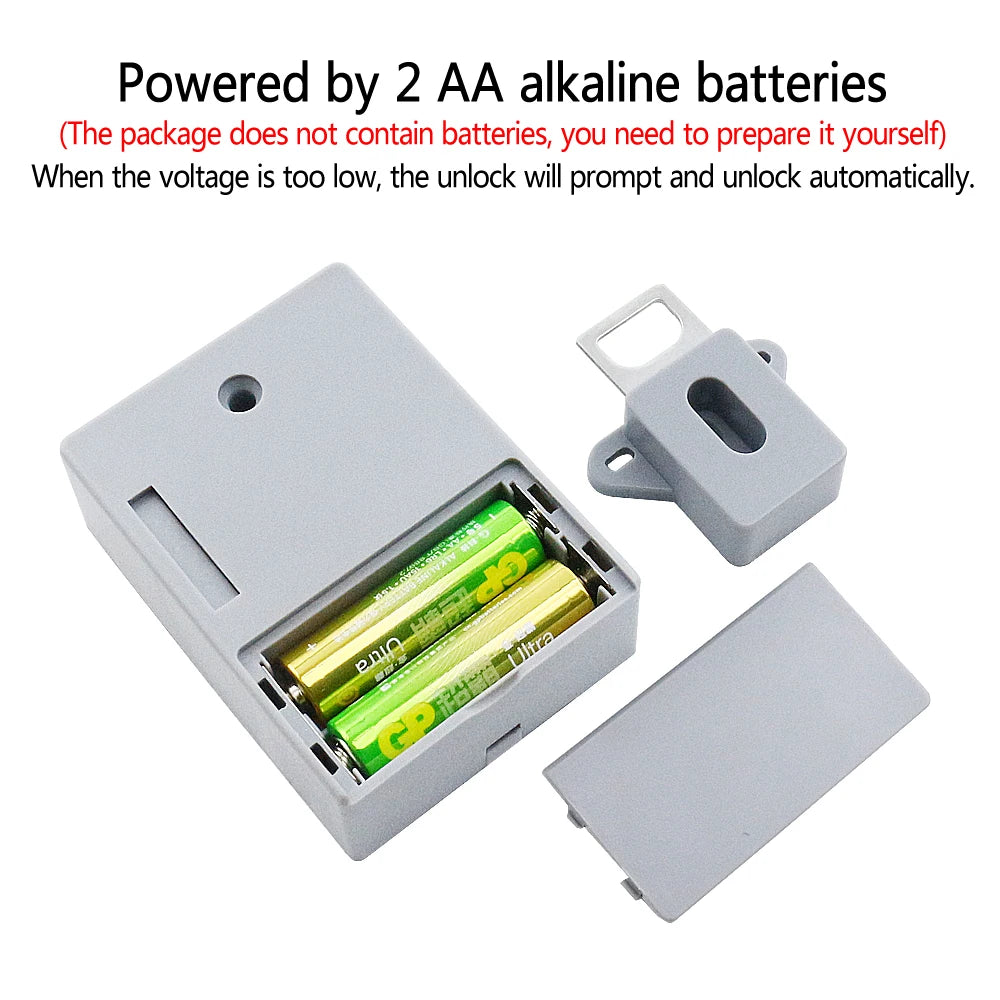

About the battery, when the card is touched, if there is a long beep after unlocking, it means that the battery voltage is insufficient. At this time, the lock can be used about 50 times. Please replace the battery in time，When the battery is seriously insufficient, it will automatically unlock, which can effectively prevent the battery from being unable to unlock after running out.

Regarding NFC unlocking, your mobile phone must support adding physical access cards before it can be used. IOS system does not support adding access cards, so you need to add credit cards as unlocking cards before you can use them. (Downloading third-party NFC software cannot be sensed, and you need to use the software owned by the mobile phone system, such as Android/Hongmeng system, and the mobile phone wallet APP has the function of adding an access card)

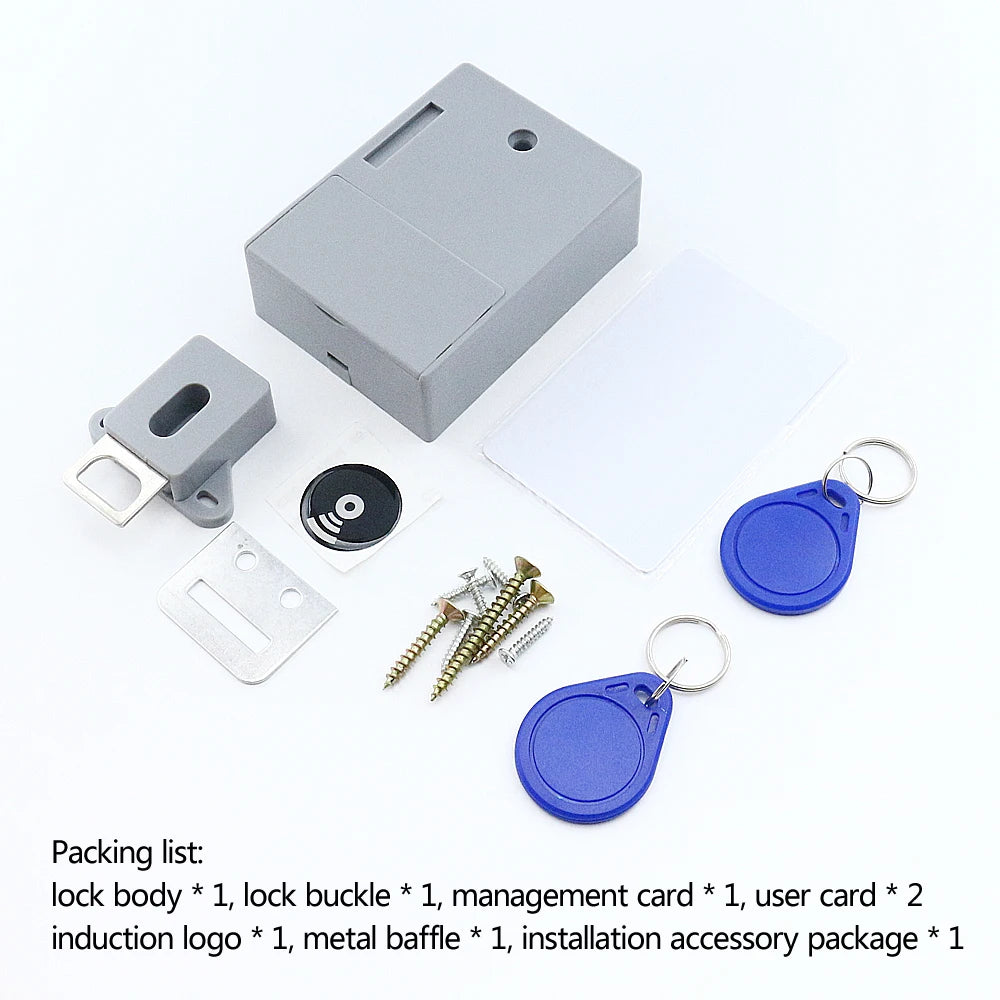

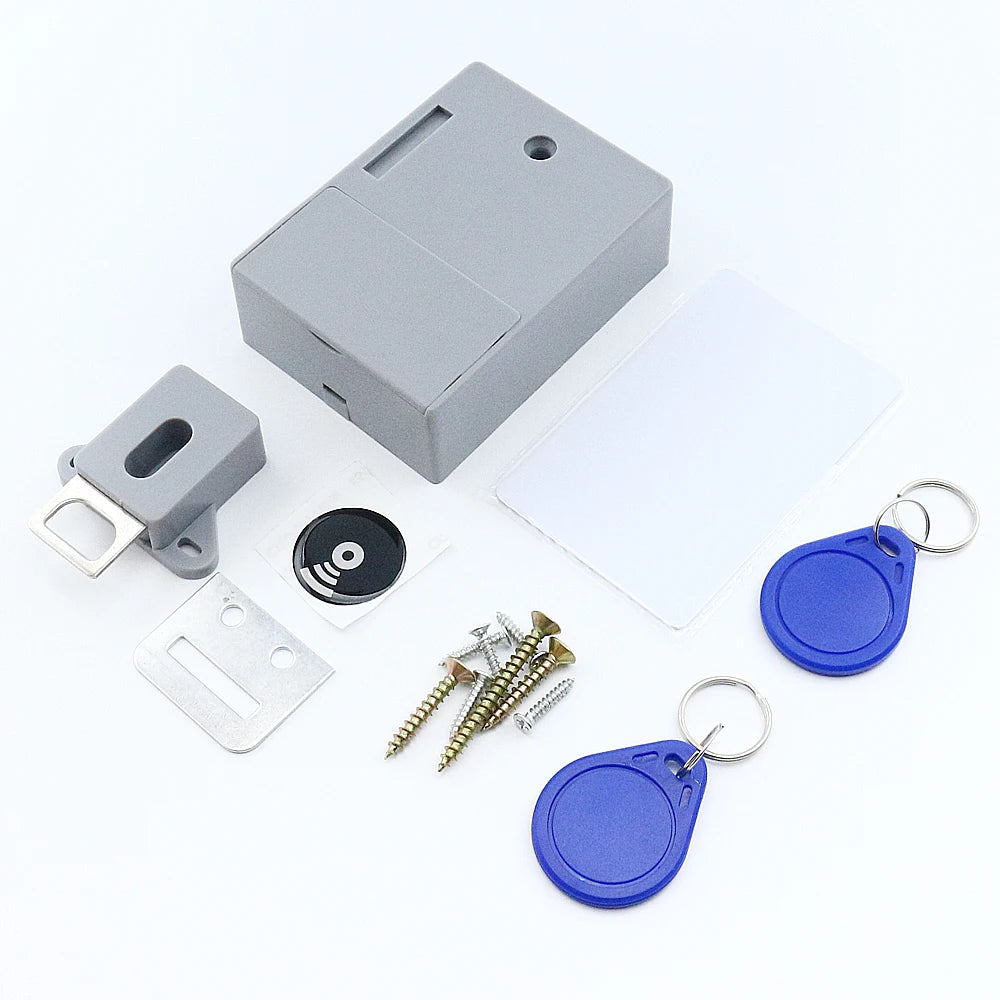

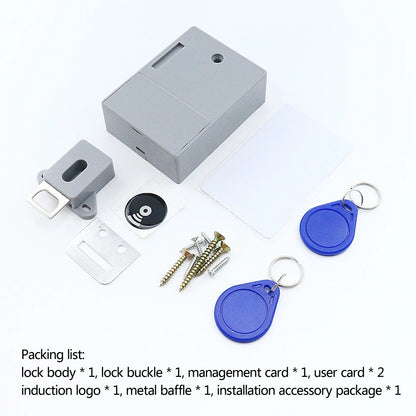

Package Includes:

1x Lock body without batteries

1x Lock Buckle

2x User Card (work at about 2.5CM distance)

1x Management Card (work at about 4.5CM distance)

1x Pack of Screws
